Raycus Fiber Laser Fiber Laser Source in India
Raycus fiber laser sources are the most widely deployed continuous wave (CW) generators in India for sheet metal cutting machines, offering balanced electro-optical efficiency (>35%), high stability across Indian ambient conditions, and economical module replacement costs. TriQuench India stocks 1.5kW to 6kW+ Raycus units in Ahmedabad with complete technical support and factory test reports.
Available Raycus Fiber Laser Wattage Models
Select your required power rating for detailed cut thickness benchmarks, chiller specifications, and pricing.
1.5kWIn StockRaycus 1.5kW (RFL-C1500)
Model: RFL-20-CE

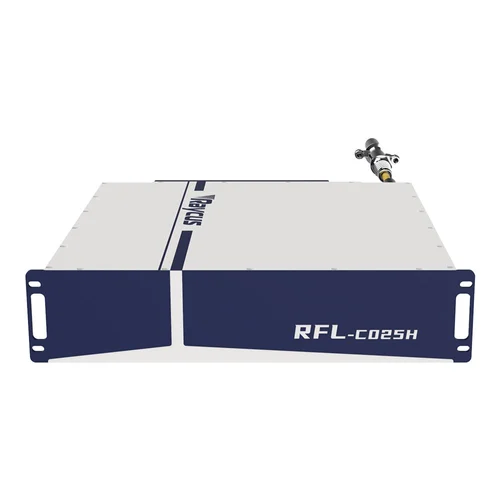

2kWIn StockRaycus 2kW (RFL-C2000S)
Model: RFL-025-CE
3kWIn StockRaycus 3kW (RFL-C3000S)
Model: RFL-C3000S-CE

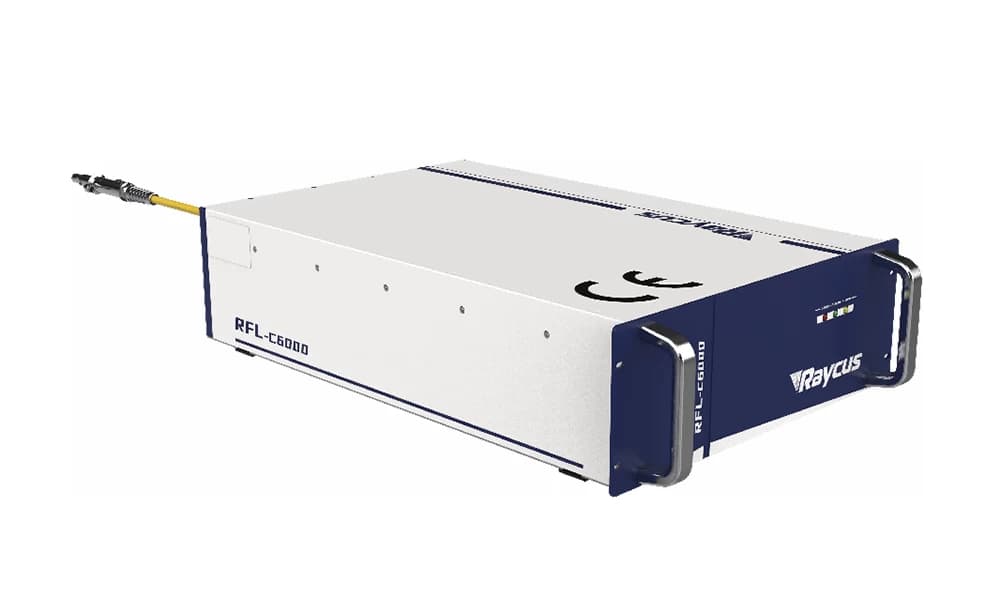

6kWIn StockRaycus 6kW (RFL-C6000S)
Model: RFL-C6000S-CE
Raycus Fiber Laser Engineering Specifications
| Power Rating | Model Number | Wavelength | Modulation Freq | Core Diameter | Optimal Heads | Price Status |
|---|---|---|---|---|---|---|
| 1.5kW (1500W) | RFL-C1500 | 1080 ± 5 nm | 5 kHz | 50 μm (25/100 μm optional) | Raytools BM110, Raytools BM111, WSX NC30, Ospri LC218 | Price on Request |
| 2kW (2000W) | RFL-C2000S-CE | 1080 ± 5 nm | 5 kHz | 50 μm | Raytools BM110, Raytools BM111, WSX NC30, Ospri LC218 | Price on Request |
| 3kW (3000W) | RFL-C3000S-CE | 1080 ± 5 nm | 5 kHz | 50 μm (100 μm optional) | Raytools BM111, WSX NC30, Ospri LC808, BOCI BLT 421S | Price on Request |
| 6kW (6000W) | RFL-C6000S-CE | 1080 ± 5 nm | 5 kHz | 100 μm | Raytools BM06K, Raytools BM114, WSX NC63, Ospri LC608, BOCI BLT 642H | Price on Request |
Compatible Laser Cutting Heads
Standard QBH/QCS optical interfaces on Raycus Fiber Laser generators connect seamlessly to leading cutting heads:
- Raytools autofocus heads: BM110, BM111, BM06K, BM114
- WSX heads: NC30, NC63, NC30B
- Ospri heads: LC218, LC808, LC608
- BOCI heads: BLT 421S, BLT 642H, BLT 643H
Quality Assurance & Testing
Raycus Fiber Laser sources supplied by TriQuench India undergo comprehensive multi-point diagnostic checks, bench testing, and optical calibration.
- Verified: Laser diode modules, internal optical combiner, control boards
- Pre-requisite: Certified dual-temperature chiller maintenance & clean ambient
- Support: Local cleanroom inspection in Ahmedabad, Gujarat
Frequently Asked Questions: Raycus Fiber Laser
Why should I buy a Raycus laser source from TriQuench India?▾
TriQuench India is based in Ahmedabad, Gujarat, providing genuine Raycus units with factory test reports, ex-stock availability, GST invoices, and an in-house cleanroom repair laboratory. We eliminate weeks of international shipping downtime.
What is the typical lifespan of a Raycus fiber laser source?▾
Raycus continuous wave fiber laser diodes have an estimated operational design life of 100,000 hours under clean power and properly cooled water chiller conditions.
Can TriQuench replace or upgrade my existing 1kW/1.5kW source to a 3kW or 6kW Raycus?▾
Yes, we specialize in retrofits and wattage upgrades. We assess your CNC bed, chiller capacity, and cutting head to execute smooth drop-in upgrades.
How does Raycus compare with Maxphotonics and IPG in India?▾
Raycus offers the largest spare part ecosystem and field technician familiarity in India. Maxphotonics is noted for compact size and high wall-plug efficiency. IPG remains the premium ultra-high-end option. TriQuench supplies and services all three.
What are the common alarm codes on Raycus laser sources?▾
Common alarm codes include Alarm 01 (Interlock), Alarm 02 (Over-temperature), Alarm 04 (Back-reflection / BPR), and power decay due to contaminated optics. TriQuench resolves all alarms with fast turnaround.
Where can I download the official Raycus user manual and monitor software?▾
Visit our Support page or download directly from the official Raycus portal (en.raycuslaser.com). We never rehost modified binaries.
Official Manufacturer Documentation:
Always download official software and user manuals directly from the manufacturer portal.
