Max / Maxphotonics Fiber Laser Source in India
Max / Maxphotonics fiber laser sources (MFSC series) are known across India for their compact volume, high electro-optical efficiency (>40%), and high anti-reflection capabilities on brass and aluminium. TriQuench India supplies genuine Max / Maxphotonics continuous wave laser sources from 1.5kW to 6kW+ with local stock and dedicated service in Ahmedabad.
Available Max / Maxphotonics Wattage Models
Select your required power rating for detailed cut thickness benchmarks, chiller specifications, and pricing.

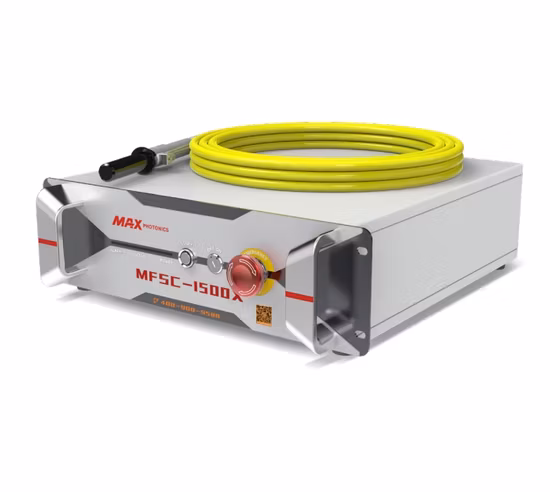

1.5kWIn StockMax 1.5kW (MFSC-1500X)
Model: MFSC-1500X
2kWIn StockMax 2kW (MFSC-2000X)
Model: MFSC - 2000X

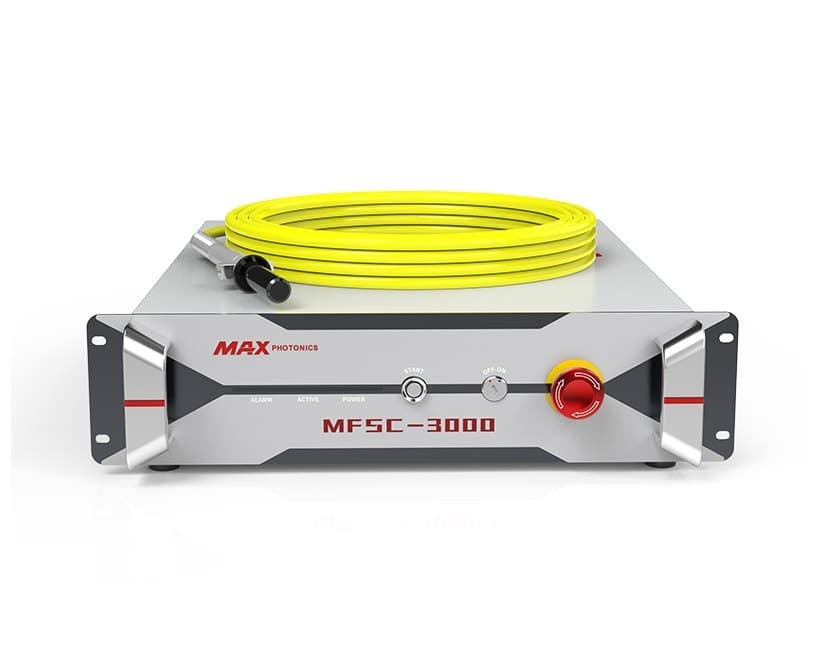

3kWIn StockMax 3kW (MFSC-3000X)
Model: MFSC - 3000X
6kWIn StockMax 6kW (MFSC-6000X)
Model: MFSC - 6000X
Max / Maxphotonics Engineering Specifications
| Power Rating | Model Number | Wavelength | Modulation Freq | Core Diameter | Optimal Heads | Price Status |
|---|---|---|---|---|---|---|
| 1.5kW (1500W) | MFSC-1500X | 1080 ± 5 nm | 20 kHz | 50 μm (25 μm optional) | Raytools BM110, WSX NC30, Ospri LC218 | Price on Request |
| 2kW (2000W) | MFSC-2000X | 1080 ± 5 nm | 20 kHz | 50 μm | Raytools BM110, Raytools BM111, WSX NC30, Ospri LC218 | Price on Request |
| 3kW (3000W) | MFSC-3000X | 1080 ± 5 nm | 20 kHz | 50 μm (100 μm optional) | Raytools BM111, WSX NC30, Ospri LC808, BOCI BLT 421S | Price on Request |
| 6kW (6000W) | MFSC-6000X | 1080 ± 5 nm | 20 kHz | 100 μm | Raytools BM06K, WSX NC63, Ospri LC608, BOCI BLT 642H | Price on Request |
Compatible Laser Cutting Heads
Standard QBH/QCS optical interfaces on Max / Maxphotonics generators connect seamlessly to leading cutting heads:
- Raytools autofocus heads: BM110, BM111, BM06K, BM114
- WSX heads: NC30, NC63, NC30B
- Ospri heads: LC218, LC808, LC608
- BOCI heads: BLT 421S, BLT 642H, BLT 643H
Quality Assurance & Testing
Max / Maxphotonics sources supplied by TriQuench India undergo comprehensive multi-point diagnostic checks, bench testing, and optical calibration.
- Verified: Laser diode modules, internal optical combiner, control boards
- Pre-requisite: Certified dual-temperature chiller maintenance & clean ambient
- Support: Local cleanroom inspection in Ahmedabad, Gujarat
Frequently Asked Questions: Max / Maxphotonics
Is Max and Maxphotonics the same brand?▾
Yes. Max and Maxphotonics refer to the same fiber laser technology series across India and international markets.
Where can I buy genuine Max / Maxphotonics laser sources in India?▾
TriQuench India Pvt. Ltd. (Ahmedabad, Gujarat) supplies genuine Max / Maxphotonics sources with CE compliance, factory certificates, and local technical support.
Does TriQuench provide repair services for Maxphotonics laser sources?▾
Yes, TriQuench operates an advanced cleanroom repair center in Ahmedabad for Max fiber laser sources, servicing pump diodes, combiners, and QBH cables.
How does Maxphotonics wall-plug efficiency help reduce costs?▾
With electrical-to-optical conversion efficiency exceeding 40%, Max sources consume up to 15% less power than older generators, saving lakhs in annual electricity bills.
Can I cut brass and copper safely with Max fiber laser sources?▾
Yes, Max continuous wave lasers include multi-level optical anti-reflection safety devices to protect internal optical cavities from reflective damage.
What are the common error codes on Maxphotonics fiber lasers?▾
Common codes include Alarm 01 (Interlock/Chiller), Alarm 02 (High Temp), Alarm 04 (BPR Back-reflection), and Alarm 07 (Dew Point Condensation). TriQuench repairs all faults.
Official Manufacturer Documentation:
Always download official software and user manuals directly from the manufacturer portal.
