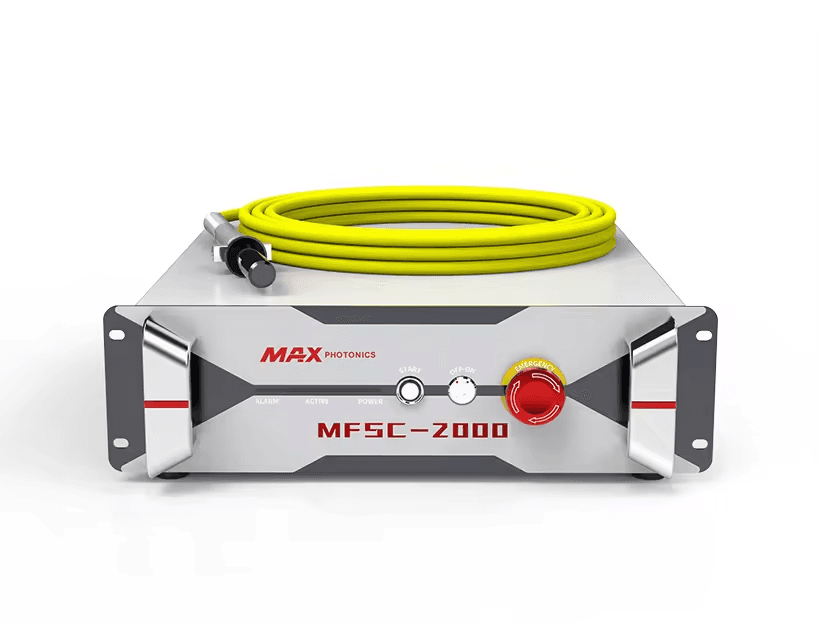

Max 2kW Fiber Laser Source Price in India
The Max / Maxphotonics 2kW (MFSC-2000X) continuous wave fiber laser source delivers reliable sheet metal cutting on mild steel up to 18 mm and stainless steel up to 8 mm. TriQuench India provides ready stock in Ahmedabad, GST invoices, certified factory test reports, and complete on-site integration support across India.
Product Overview: Max 2kW Source MFSC-2000X Price
The Max / Maxphotonics 2kW (MFSC-2000X) is an efficient single-module continuous wave laser built for industrial medium-plate processing with ultra-low operating overheads.
Featuring enhanced back-reflection protection, the MFSC-2000X cuts reflective copper and brass alloys without triggering nuisance safety shutdowns.
Supplied by TriQuench India with ready inventory, authentic factory quality certification, and complete technical parameter guidelines for CypCut and Friendess controllers.
Key Performance Benchmarks:
Technical Specification Table: Max MFSC-2000X
| Wavelength | 1080 ± 5 nm |
| Operating Mode | CW / Modulated |
| Maximum Modulation Frequency | 20 kHz |
| Output Power Stability | < ±1.5% |
| Beam Quality (BPP) | BPP < 1.4 mm*mrad |
| Output Fiber Core Diameter | 50 μm |
| Red Pilot Guide Laser | Yes (650 nm) |
| Cooling Requirement | Dual-circuit distilled water cooling (Recommended 2.0kW chiller (e.g. S&A CWFL-2000)) |
| Operating Voltage | Single Phase 220V AC ± 10%, 50/60Hz |
| Dimensions (W × H × D) | 440 × 176 × 610 mm |
| Weight | approx. 45 kg |
| Quality Assurance | Full factory test reports, optical calibration, and certified bench inspection. |
Compatible Laser Cutting Heads
Standard QBH beam delivery connector mates directly with:
- Raytools BM110
- Raytools BM111
- WSX NC30
- Ospri LC218
Compatible CNC Machines & Controllers
Pre-configured parameter profiles available for:
- Bodor (CypCut / HypCut / Weihong)
- HSG (CypCut / HypCut / Weihong)
- Senfeng (CypCut / HypCut / Weihong)
- G-Weike (CypCut / HypCut / Weihong)
- Indian CNC OEM machines (CypCut / HypCut / Weihong)
Frequently Asked Questions: Max 2kW (MFSC-2000X)
What is the cutting speed of Max 2kW on 1mm stainless steel?▾
On 1mm stainless steel using nitrogen assist, Max 2kW cuts at speeds between 25 and 32 meters per minute depending on acceleration of the CNC gantry.
How does Max 2kW compare with Raycus 2kW?▾
Max 2kW features higher modulation frequency (up to 20kHz vs 5kHz) and smaller outer chassis dimensions. Both deliver comparable cutting capacities on mild steel.
Can TriQuench ship Max 2kW to Pune, Surat, or Coimbatore?▾
Yes, we ship safely in custom wooden crates with shock watch indicators to all industrial corridors across India.
What routine maintenance is required for a Max 2kW laser?▾
Regular maintenance includes monthly chiller water replacement with deionized water, inspecting optical QBH dust seals, and cleaning air filter grilles.
What if my Max laser throws an Alarm 07 condensation warning?▾
Turn off the chiller immediately, ensure ambient room air is conditioned below 70% RH, and contact TriQuench India for cavity inspection.
