Raycus 3kW Fiber Laser Source Price in India

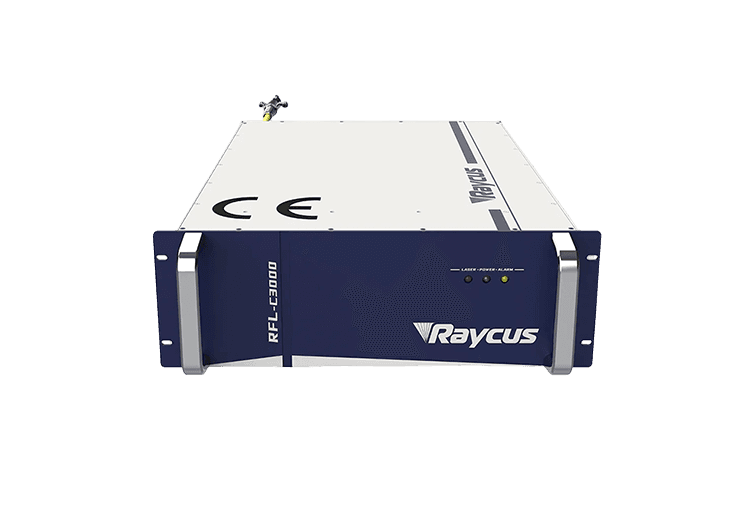

The Raycus Fiber Laser 3kW (RFL-C3000S-CE) continuous wave fiber laser source delivers reliable sheet metal cutting on mild steel up to 22 mm and stainless steel up to 10 mm. TriQuench India provides ready stock in Ahmedabad, GST invoices, certified factory test reports, and complete on-site integration support across India.
Product Overview: Raycus 3kW Source RFL-C3000S Price
The Raycus 3kW (RFL-C3000S-CE) is the most sought-after fiber laser generator in India for heavy-duty fabrication. It delivers piercing and cutting performance on mild steel up to 22mm with air, oxygen, and high-pressure nitrogen.
Featuring high wall-plug efficiency, robust single-module optical cavity engineering, and Ethernet/RS232 bus communications, the RFL-C3000S-CE offers round-the-clock reliability under harsh industrial shop floor conditions.
Available from TriQuench India with full genuine OEM pedigree, original test chart, and local engineer support for seamless integration onto your CNC gantry machine.
Key Performance Benchmarks:
Technical Specification Table: Raycus RFL-C3000S-CE
| Wavelength | 1080 ± 5 nm |
| Operating Mode | CW / Modulated |
| Maximum Modulation Frequency | 5 kHz |
| Output Power Stability | < ±1.5% |
| Beam Quality (BPP) | BPP < 1.6 mm*mrad |
| Output Fiber Core Diameter | 50 μm (100 μm optional) |
| Red Pilot Guide Laser | Yes (650 nm) |
| Cooling Requirement | Dual-circuit distilled water cooling (Recommended 3.0kW - 4.0kW chiller (e.g. S&A CWFL-3000)) |
| Operating Voltage | Three Phase 380V AC ± 15%, 50/60Hz |
| Dimensions (W × H × D) | 585 × 237 × 855 mm |
| Weight | approx. 80 kg |
| Quality Assurance | Full factory test reports, optical calibration, and certified bench inspection. |
Compatible Laser Cutting Heads
Standard QBH beam delivery connector mates directly with:
- Raytools BM111
- WSX NC30
- Ospri LC808
- BOCI BLT 421S
Compatible CNC Machines & Controllers
Pre-configured parameter profiles available for:
- Bodor (CypCut / HypCut / Weihong)
- HSG (CypCut / HypCut / Weihong)
- Senfeng (CypCut / HypCut / Weihong)
- G-Weike (CypCut / HypCut / Weihong)
- DNE (CypCut / HypCut / Weihong)
- All Indian Sheet Metal CNCs (CypCut / HypCut / Weihong)
Frequently Asked Questions: Raycus 3kW (RFL-C3000S)
Why is 3kW Raycus the most popular choice for Indian job shops?▾
A 3kW laser cuts 1mm to 6mm MS at over 15 m/min and pierces up to 20mm plate reliably, making it the ideal single-machine solution for job shops handling diverse plate thicknesses.
What three-phase power supply is required for Raycus 3kW?▾
It requires 380V ± 15% 3-phase AC power with neutral and earth. A 15kVA dedicated servo stabilizer is strongly advised to safeguard against voltage spikes.
Which cutting head works best with Raycus 3kW?▾
Raytools BM111 autofocus, BOCI BLT 421S, and WSX NC30 are the top matching heads for 3kW Raycus sources in Indian production environments.
How does Raycus 3kW compare to Max 3kW in price and performance?▾
Raycus 3kW offers slightly higher low-speed cutting stability on thick carbon steel, while Max 3kW has a more compact form factor. TriQuench supplies and repairs both brands.
How do I verify the authenticity of a Raycus 3kW source?▾
TriQuench provides genuine Raycus units with factory test reports, intact anti-tamper seals, and verifiable serial numbers.
