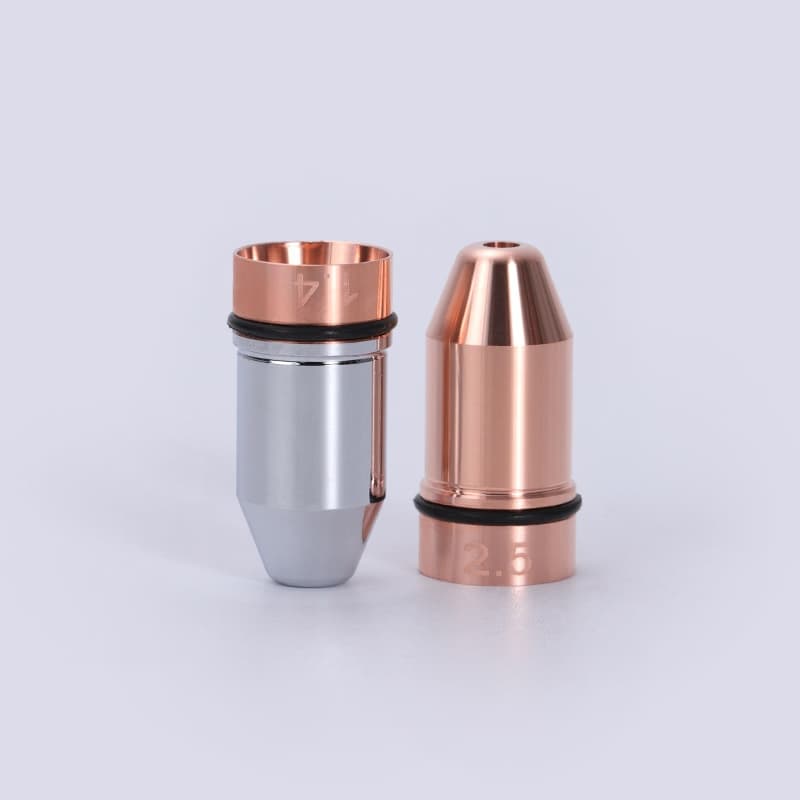

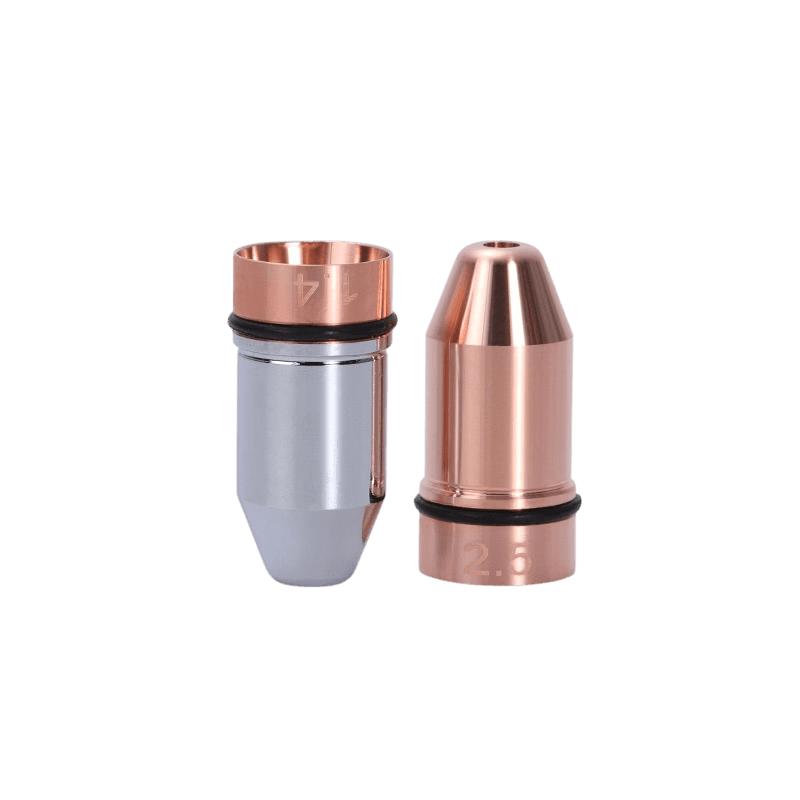

Name: DNE Bullet Nozzle Dia-10.6
Brand: TriQuench
SKU: 6a29279e12c2c7ebaf057377
Price: 249 INR
Availability: InStock

Question 1

What is a bullet nozzle used for?

Accepted Answer

Bullet nozzles help improve focused gas flow during cutting.

Question 2

Is this suitable for precision cutting?

Accepted Answer

Yes, it is designed for accurate laser cutting operations.

Question 3

What is a bullet nozzle and how is it different from a standard laser nozzle?

Accepted Answer

A bullet nozzle has a conical, bullet-shaped tip instead of a flat-faced design. This shape concentrates the assist gas more tightly around the beam, giving better focus and cleaner cuts on thin sheet metal.

Question 4

What is the DNE Bullet Nozzle Dia-10.6 used for?

Accepted Answer

It's used for precision fiber laser cutting of thin sheet metal, where accurate gas focusing and a stable cut edge matter more than raw cutting speed.

Question 5

What are the exact dimensions and thread size?

Accepted Answer

Diameter 10.6mm, height 22mm, with an M11 thread.

Question 6

What caliber should I choose for this nozzle?

Accepted Answer

Available from 1mm to 6mm caliber. Smaller calibers give a smoother edge finish on thin material; larger calibers allow faster cutting but with slightly rougher edges.

Question 7

What materials and thicknesses is this nozzle best suited for?

Accepted Answer

It's optimised for thin sheet metal cutting rather than thick plate or tube in mild steel, stainless steel, and similar metals.

Question 8

Why choose a bullet nozzle over a standard cone nozzle for thin sheet work?

Accepted Answer

The tighter gas concentration reduces heat spread and dross, which matters most on thin material where standard nozzles can leave burrs or a wider heat-affected zone.

Question 9

Does the bullet shape affect nozzle lifespan or heat resistance?

Accepted Answer

The design offers high heat resistance and durable industrial-grade construction, holding up well under sustained precision cutting cycles.
