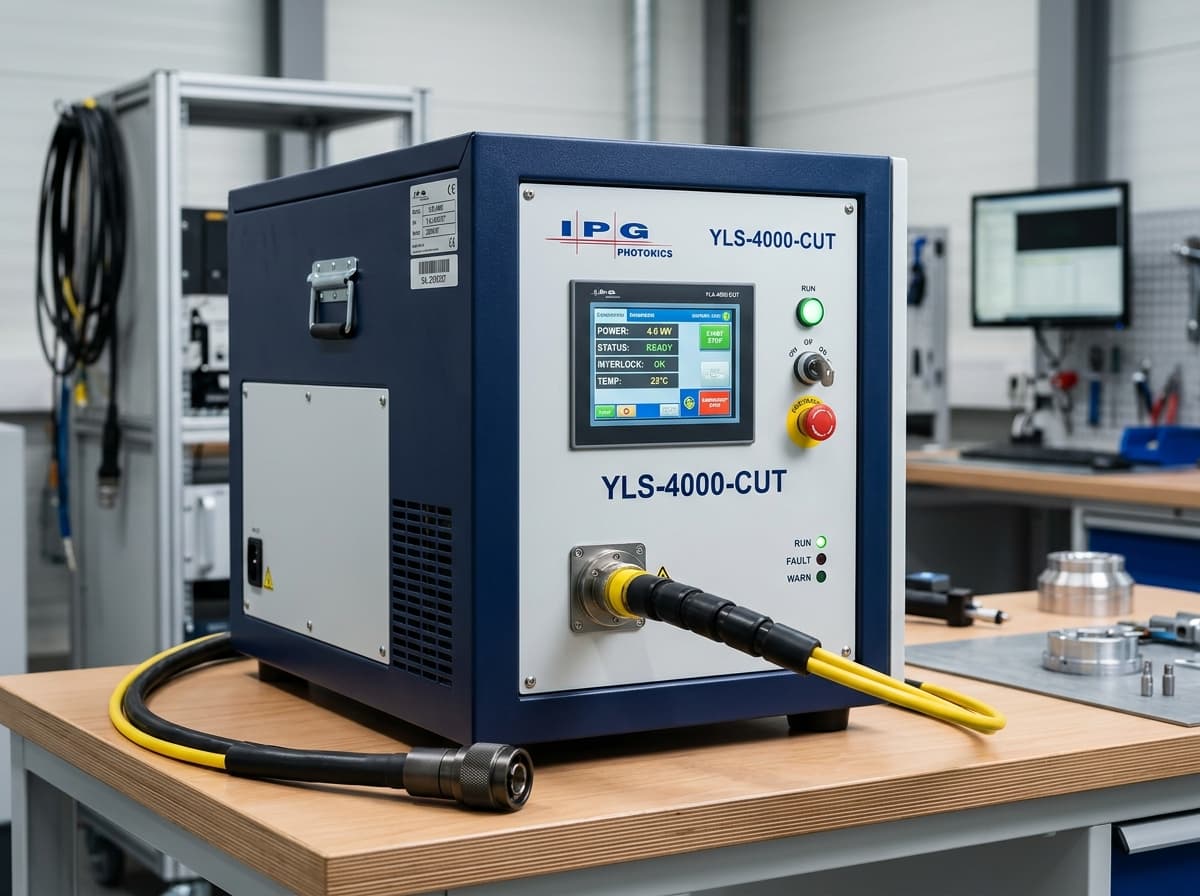

IPG Fiber Laser Source Repair in India
TriQuench India provides certified component-level repair for IPG Photonics fiber laser sources in Ahmedabad, Gujarat. We resolve low power output, red alarm trips, burnt QBH delivery cables, and degraded diode modules with 24 to 48-hour turnaround, certified testing and full support, and up to 75% cost savings over purchasing a new generator.
Common IPG Photonics Fault Codes & Repair Actions
Technical diagnostic benchmarks evaluated by TriQuench India cleanroom optical engineers.
| Alarm Code / Symptom | Severity Level | Root Cause | Cleanroom Resolution | Avg Turnaround |
|---|---|---|---|---|
| Alarm 01 / Laser Interlock Open | Critical - Laser Emission Disabled | External safety loop open, emergency stop active, or chiller interlock relay tripped. | Inspect chiller flow switch, cabinet door interlocks, and 24V DC interlock wiring loop pinout. | 24 - 48 Hours |
| Alarm 02 / Over-Temperature Trip | High - Thermal Protection Active | Chiller water temperature > 26°C, clogged water filter, low flow rate (< 25 L/min), or ambient temperature > 38°C. | Check dual-circuit water chiller setpoints (22°C-25°C for laser cavity, 28°C-30°C for QBH optic), clean radiator coils, inspect DI water filter. | 24 - 48 Hours |
| Alarm 04 / Back-Reflection (BPR) Alarm | Critical - Optic Protection Active | Laser back-reflected into internal cavity during piercing or cutting reflective metals (copper, brass, mirror finish SS). | Inspect beam delivery quartz head, increase nozzle standoff distance, adjust pierce parameters (progressive pierce), inspect internal optical isolator. | 24 - 48 Hours |
| Laser Power Decay > 20% | Degradation - Low Cutting Speed & Dross | Pump diode module aging, combiner degradation, burnt protective window on QBH output connector. | Test output power with calibrated thermal detector. Clean or replace QBH quartz block; replace degraded 976nm pump diode bars in ISO Class 7 cleanroom. | 24 - 48 Hours |
| RS232 / CAN Communication Failure | Moderate - CNC Controller Lockout | Baud rate mismatch, corrupted RS232 cable shielding, or damaged motherboard communication transceiver chip. | Verify 9600 / 115200 baud setting matching CypCut/HypCut. Replace shielded DB9/RJ45 cable. Test RS232 logic levels. | 24 - 48 Hours |
When to Repair vs Replace Your IPG Fiber Laser Source
When to Repair (Recommended)
- Single or dual pump diode module failure with power drop of 10% to 35%
- Burnt or contaminated QBH quartz end-cap crystal
- Over-temperature or dew point humidity interlock sensor trips
- Driver board power supply capacitor failure or RS232 communication lockouts
- Typical cost: ₹30,000 to ₹1,80,000 (Saves 60-75% vs new)
When to Replace
- Total resonator cavity burning caused by severe back-reflection across all modules
- Physical internal flood damage from ruptured water chiller piping
- Laser generator is obsolete and wattage upgrade (e.g. from 1kW to 3kW) is needed
- TriQuench offers buyback credits and trade-in discounts on new IPG sources
Frequently Asked Questions: IPG Photonics Repair
How much does it cost to repair a IPG laser source in India?▾
Repair costs for IPG Photonics generators typically range from ₹30,000 for QBH connector cleaning and optical fiber re-splicing up to ₹1,80,000 for multi-module diode array replacements. This saves 60% to 75% compared to purchasing a new OEM source.
What causes low power output on IPG fiber lasers?▾
Power drop typically results from degraded 976nm semiconductor pump diode packages, thermal misalignment in the optical combiner, or a contaminated output quartz block. TriQuench balances diode currents and replaces damaged packages in an ISO Class 7 cleanroom.
How long does a IPG laser source repair take?▾
Standard bench diagnosis and component repairs are completed within 24 to 48 hours at our Ahmedabad center. Emergency field technician visits can be arranged across Gujarat, Maharashtra, Delhi NCR, and Tamil Nadu within 12 to 24 hours.
What quality assurance is provided on repaired IPG sources?▾
All repaired IPG Photonics sources and replaced pump modules come with comprehensive cleanroom bench testing, power calibration, and certified technical support.
Can TriQuench fix Alarm 01, Alarm 02, and Alarm 04 on IPG?▾
Yes. Alarm 01 (Interlock loop), Alarm 02 (Over-temperature), and Alarm 04 (Back-reflection / BPR) are routine faults we resolve by resetting internal logs, repairing driver circuitry, and purging optical cavities.
Where should I ship my damaged IPG laser source for repair?▾
Ship directly to TriQuench India Pvt. Ltd., Sumel Business Park - 7, Rakhial, Ahmedabad, Gujarat 380023. Contact our service desk at +91-9601111615 for transport guidelines and crate pickup support.
